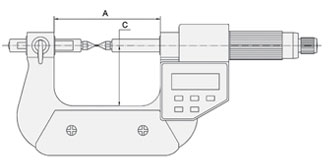

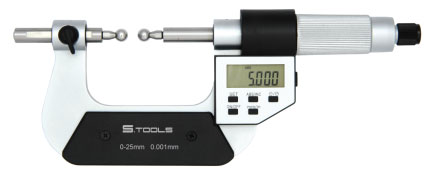

 Gear Tooth Micrometer

Measuring over-pin diameter of gears with steel-ball-tipped measuring faces

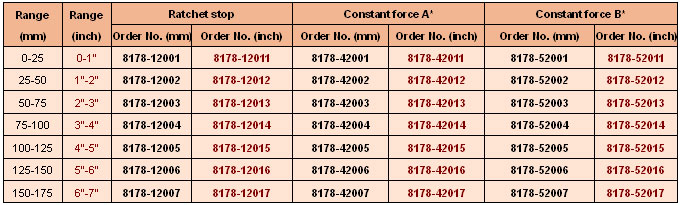

       8178-42001:

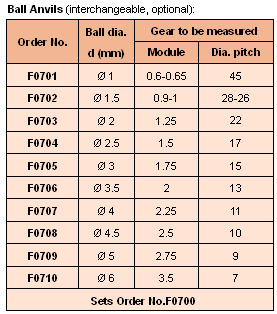

Constant force A (F0710 anvils)

• Without IP54 protect    • Chrome-plated frame
• Resolution: 0.001mm (Metric); 0.00005" (Inch)
• Digital Model same as series 8103


*Constant force A: Ratchet stop and Ratchet friction thimble; Constant force B: Ratchet stop and friction thimble
