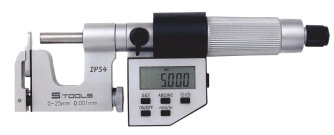

 Universal Micrometer*

For measuring tube thickness, shoulder-edge distance, rivet head height and step height
*Flat or rod anvil interchangeable



        8174-42001:
Constant force A

• IP54, Standard: DIN40050/IEC529.
• Resolution: 0.001mm (Metric); 0.00005"(Inch)
• Chrome-plated frame      • Accuracy: 0.004mm
• Digital Model same as series 8103


 *Constant force A: Ratchet stop and Ratchet friction thimble; Constant force B: Ratchet stop and friction thimble
