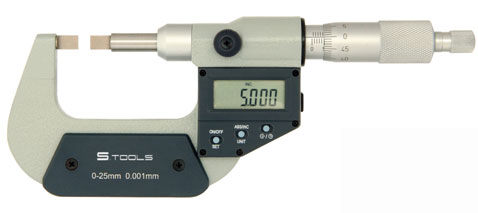

 Blade Micrometer (non-rotating spindle)

Measuring faces in blade shape for measuring hard-to-reach dimension



        8129-11101: Ratchet stop, painted frame, anvil type A

• Without IP54 protect
• Resolution: 0.001mm (Metric); 0.00005"(Inch)
• Painted frame
• Digital Model same as series 8104-*1***(8104,Type A)


* Order No.8129-**2** for anvil type B
