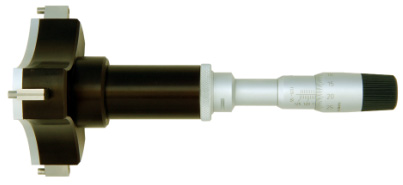

SERIES 8502 — L1 Type
8502-13018
|
 |
FEATURES
• Three-point model.
• Carbide-tipped measuring faces.
• Supplied with standard setting ring.
• Ratchet stop for constant force.
• Aluminum body, Anticathode-oxidation surface or painted surface are optional.
• Graduation: 0.005mm or 0.0002"
• Accuracy: 0.005mm or 0.0002"
• Extension rod (length: 150mm or 6" ) for deep holes.

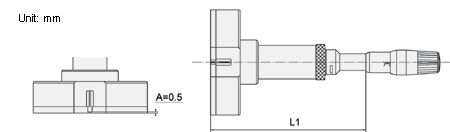

• Dimension: L1=114mm/4.56", A=0.5mm/0.02"
• Order No.8502-2**** with titanium-plated anvils.
• With carry case.

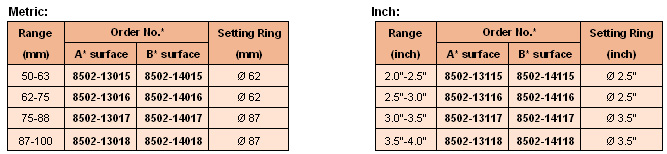

*Titanium-plated anvils Order No.8502-2****
A* surface: Anticathode-oxidation surface B* surface: Painted surface
