Digimatic Outside Micrometer(SERIES 8104)

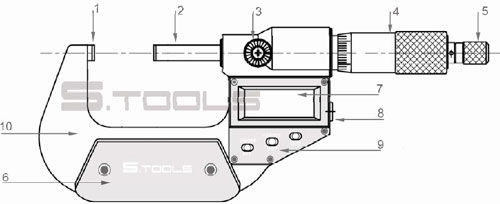

1-Anvil with carbide measuring face
2-Spindle with carbide measuring face
3-Locking level
4-Thimble (different as constant force type)
5-Ratchet stop driving knob

6-Heat isolation plate
7-LCD display
8-RS232 output
9-Keys
10-Frame

1.Keys
"ON/OFF, SET":
"ON/OFF ": To turn power on or off by holding the key less than two seconds
"SET": Set origin starting zero for absolute measurement by holding the key more than two seconds
"ABS/INC, UNIT"
"ABS/INC": Absolute mode and incremental mode conversion by holding the key less than two seconds
"UNIT": mm/inch conversion at any spindle position by holding the key more than two seconds
"

For data output on measurement, output is one display data by holding the key less than two seconds
or output is uninterrupted display date by holding the key more than two seconds.

For clock time display, it isn' t available during measurement.

2. Specification
- Resolution: 0.001mm / 0.00005"
- Accuracy: detail as S.TOOLS catalogue
- Repeatability: 0.001mm / 0.00005"
- Measuring force: 5 - 10n
- Power consumption: ≤35μA
- Max. measuring speed: Unlimited
- Operation temperature: 0- 40ºC
- Date Output: RS232

3. Power
- One silver oxide cell SR44 for continuous use of one year.
- Display flashes when battery voltage is lower than 1.4V. Please replace battery.
- Power will be automatically turn off in five minutes later if micrometer is not used.

4. For other instruction, please refer the details about mechanical type.
